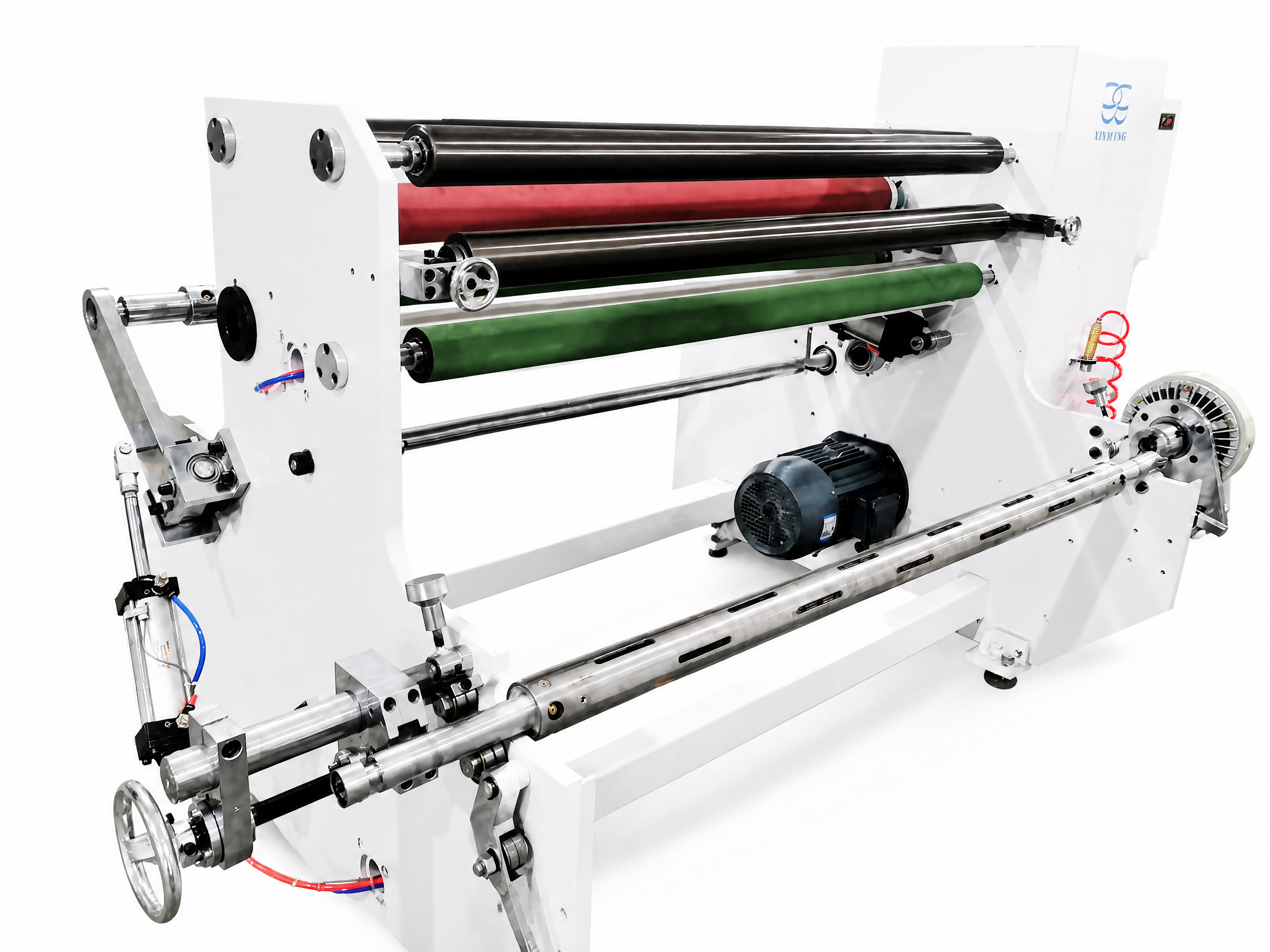

801F-H
1. Application:
This machine is suitable for rewinding self-adhesive tape such as BOPP adhesive packing tape , masking tape, duct tape, double sides tape, foam tape, kraft tape etc.
2.Technical Parameters for rewinding machine
Material :BOPP adhesive packing tape , masking tape, duct tape, double sides tape, foam tape, kraft tape
Voltage(V/Hz) :3Phase 380V 50HZ
Effective work width:1300mm/ 1600mm
Max.unwinding diameter :Φ800mm
Max.rewinding diameter :250mm or 300mm or others
Rewinding Shaft :1Shaft or 2 Shaft for choose
Inner diameter of core :76.2mm
Features:
A. Adopts 25mm armor plate for stable structure and nice appearance.
B. With high anti-adhesive rubber pressure roller.Could be applied to rewinding adhesive tape with high viscosity and strong tensile.
C. Enlarge transfer shaft with double air cylinder.
D. Magnetic tension control system and brake.
E. Passing embossing shaft and active smooth roller are used for eliminating film-wrinkle and air -bubble.
F. Auto coherent control system adopted, which means once the machine started, the whole rewinding process would complete automatically.
