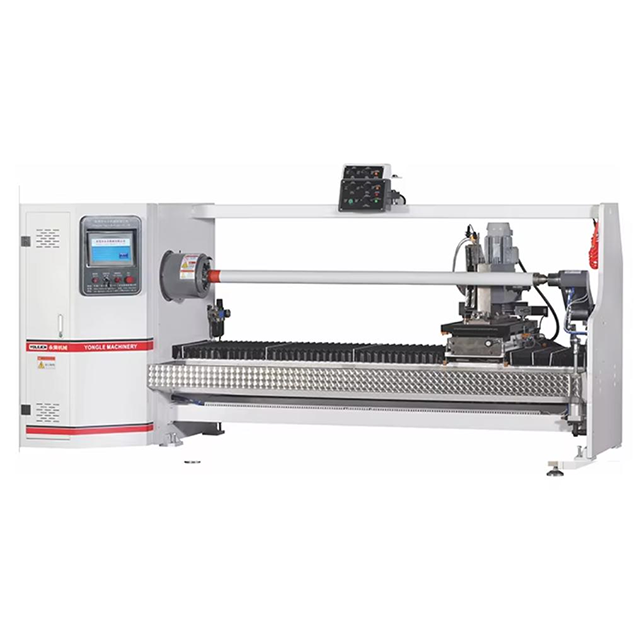

Usage
Suitable for cutting various of material such as Foam tape, PVC electrical tape, cloth tape, PET tape, double sides tape, PET tape, masking tape, paper tape, medical tape etc.
Features
1. Main Driven System: AC motor with frequency inverter.Make sure the steady cutting speed.
2. Operating panel: Big size color LCD touched panel with English language.You can set up various cutting mode and monitor the cutting job directly in it.
3. Motor Control System: The PLC programmable controller,can cut various sizes in same log roll.
4. Cutting System: Mitsubishi servo motor and high accuracy ball screw and linear slide rail.To make sure the accurate cutting size.
5. Blade Feeding System: Mitsubishi servo motor and hydraulic motor for optional.It can be anthropomorphize as three-step feeding speed of the cutter to improve cutting efficiency and get best quality.
6. Blade Angle System: Mitsubishi servo motor control to calculate the blade angle, according to different type materials.No need change blade. (angle range: + / -8° ) .That will increase the production efficiency.
Parameters
Model | GS-C701-1300 | GS-C701-1600 |
Valid Width | 1300mm | 1600mm |
Max Cutting Diameter | 350mm | 350mm |
Max Cutting Speed | 34Cuts/Min | 34Cuts/Min |
Speed of Turn-able | 300-1800RPM | 300-1800RPM |
Inner Diameter of Core | 25-76mm | 25-76mm |
Min. Cutting Width | 1mm | 1mm |
Blade Diameter | 200mm,250mm,350mm | 200mm,250mm,350mm |
Tolerance | ±0.1mm | ±0.1mm |
Main Motor Power | 4KW | 4KW |
Voltage | 380V/220V | 380V/220V |
Packing Size | 2800*1250*1300mm | 3100*1250*1300 |
Weight | 1500KG | 1600KG |
