Usage
Suitable for adhesive tape such as masking tape, double sides tape, bopp tape, PVC tape, duct tape, PE Film etc different kind of tape
Features

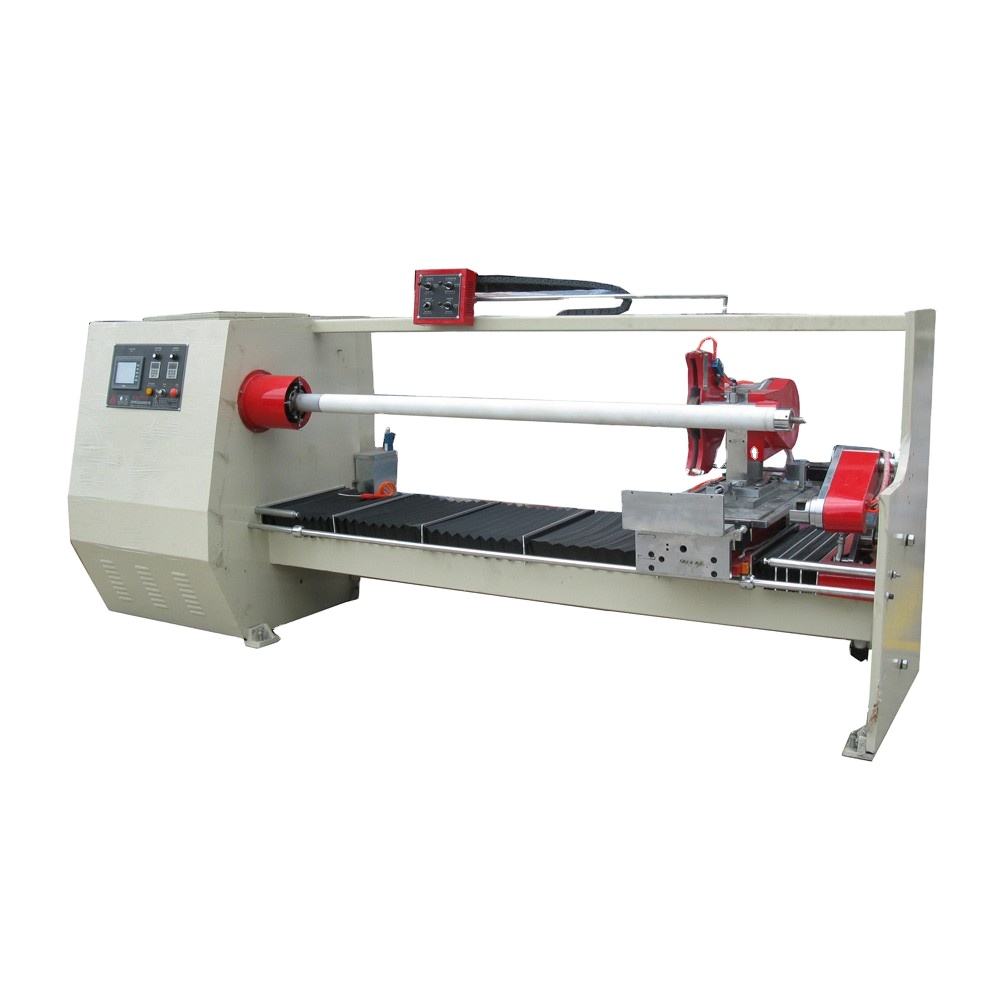

The XW-703 series Customized Cutter for Packing Tape is an single shaft and single blade cutter with advanced technology designed,featured with high precision, super luxury, safety and environmental. There are three servo functions automatic controlled by high precision system. Servo more for cutting feeding and retracting, servo motor automatic angle adjusting and servo more drive.Equipped with automatic electrical safety cover for the whole Optional Manual, Semi-automatic, Automatic Customized Cutter for Packing Tape, central controlled by an simple and easy operation 8 inches color touch screen. The cutter is with stable and precise multi-speed cutting feeding, adopting the pneumatic outside chuck and internal support chuck, which to make it more
efficient with high quality cutting, and the min. cutting with is 0.3mm, which is a new record in the industry. it is the ideal cutter for the senior adhesive of electric tape and sponge tape, It is applicable for Protective Film tape, PET tape, Kapton Tape,PVC, PE protective film, Kraft paper, Teflon/PTFE (Polytetrafluoroethylene), EVA and various kinds of adhesive tape,BOPP/OPP Carton Sealing, cloth etc.
Parameters
Model | 703D-3 | 704E-3 | 706 |
Material | BOPP,masking,double sided,cloth tapes |
Voltage(V/Hz) | 3Phase 380V 50HZ |
Effective work width | 1300mm/ 1600mm |
Max.cutting diameter | Φ300mm |
Inner diameter of core | Φ76mm~Φ77mm |
Min.slitting width | 0.5mm (please confirm) |
Feeding way | Liquid pressure cut feeding | Variable-Frequency cut feeding | Servo cut feeding |
