Applications:

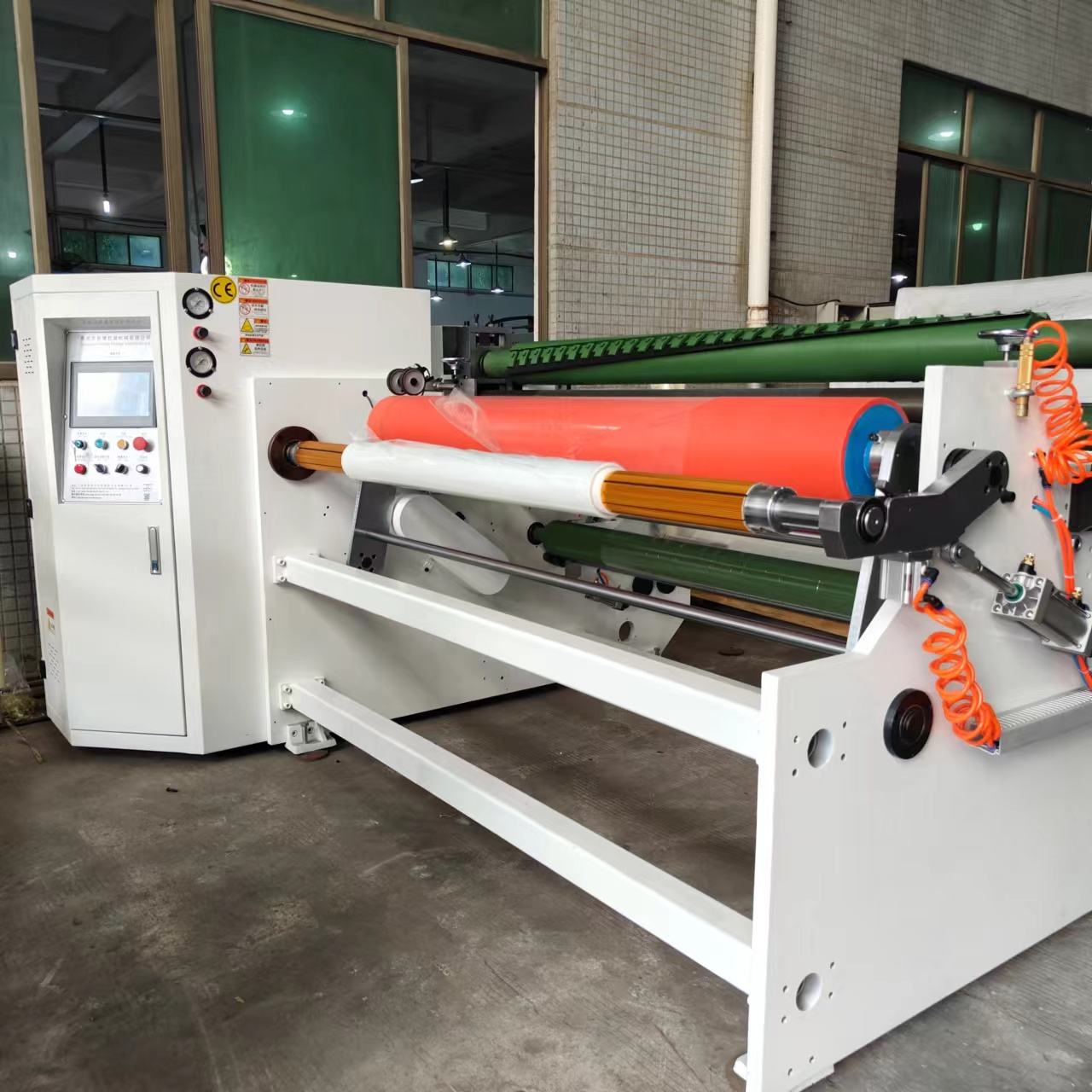

The Multifunction Pre cutting perforation Rewinding machine if for pre cutting the protective film.
1.Main parameters | |||
Effective width of raw materials | 1600mm | ||
Maximum unwinding diameter | 800mm | ||
Maximum rewinding diameter | 350mm | ||
Inner diameter of rewinding core | 76mm | ||
Mechanical operating speed | 0-80m/min | ||
power supply | 380V 50HZ 3PHASE (support customization) | ||
Air pressure source | 5KG | ||
Machine dimensions | 2300*2700*1300 | ||
machine weight | Around 1800KG | ||
Features:
A. Adopts 25mm armor plate for stable structure and nice appearance.
B. With high anti-adhesive rubber pressure roller.Could be applied to rewinding adhesive tape with high viscosity and strong tensile.
C. Enlarge transfer shaft with double air cylinder.
D. Magnetic tension control system and brake.
E. Passing embossing shaft and active smooth roller are used for eliminating film-wrinkle and air -bubble.
F. Auto coherent control system adopted, which means once the machine started, the whole rewinding process would complete automatically.
