1. Application:
Suitable for adhesive tape such as masking tape, double sides tape, bopp tape, PVC tape, duct tape, PE Film etc different kind of tape
2. Features:
1. Four shafts make the machine more efficient.
2. Each machine motion is programmable by PLC, easy and flexible operation.
3. Silicon lubricating system: the silicon lubricant prevents adhesives from clinging to the cutting blade, and ensures it’s cutting smooth each time.
4. Each cut is exactly where It´s supposed to be cut and positioned by the combination of a servo motor-ballscrew and precision slide-heaving rails. The precise of servo motor is 0.02mm.
5. The hydraulic pressure holds upper and lower tape rolls firmly against the cutting blade, no matter how large or small the roll diameter.
3. Technical Parameters:
Model
703D-3
704E-3
706
Material
BOPP,masking,double sided,cloth tapes
Voltage(V/Hz)
3Phase 380V 50HZ
Effective work width
1300mm/ 1600mm
Max.cutting diameter
Φ300mm
Inner diameter of core
Φ76mm~Φ77mm
Min.slitting width
0.5mm (please confirm)
Feeding way
Liquid pressure cut feeding
Variable-Frequency cut feeding
Servo cut feeding
| Quantity: | |
|---|---|

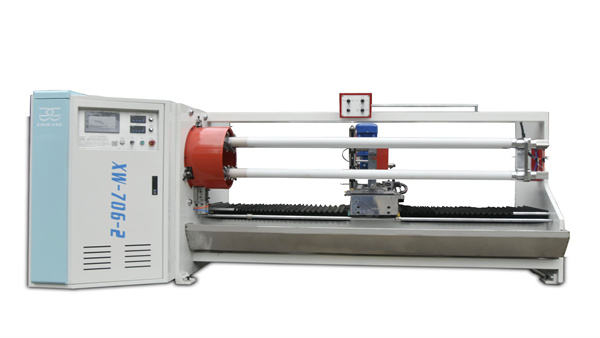

706-2
