Usage
Suitable for adhesive tape such as masking tape, double sides tape, bopp tape, PVC tape, duct tape, PE Film etc different kind of tape
Features

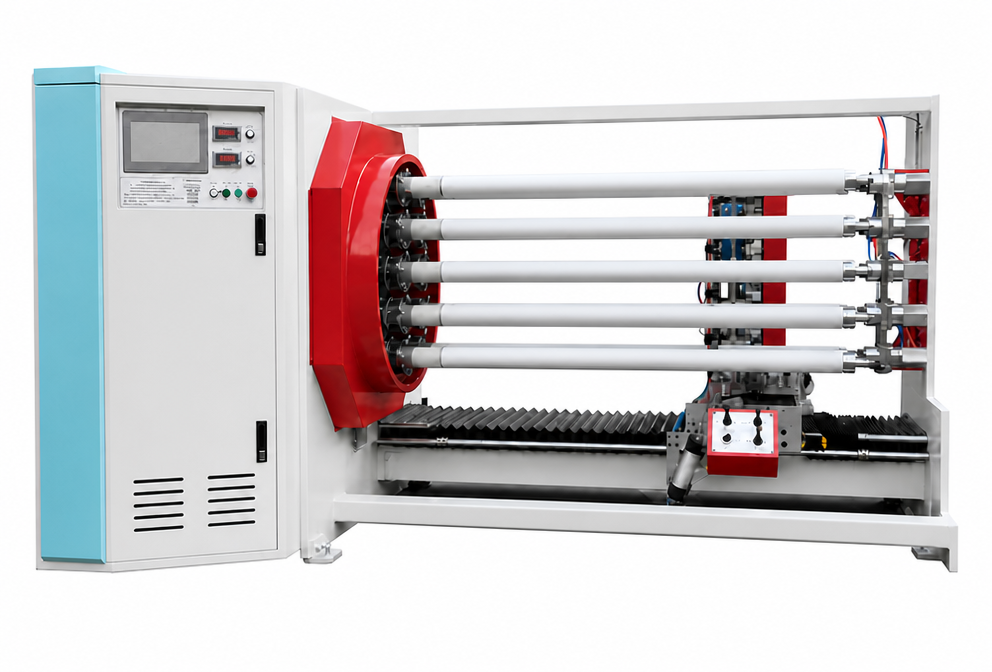

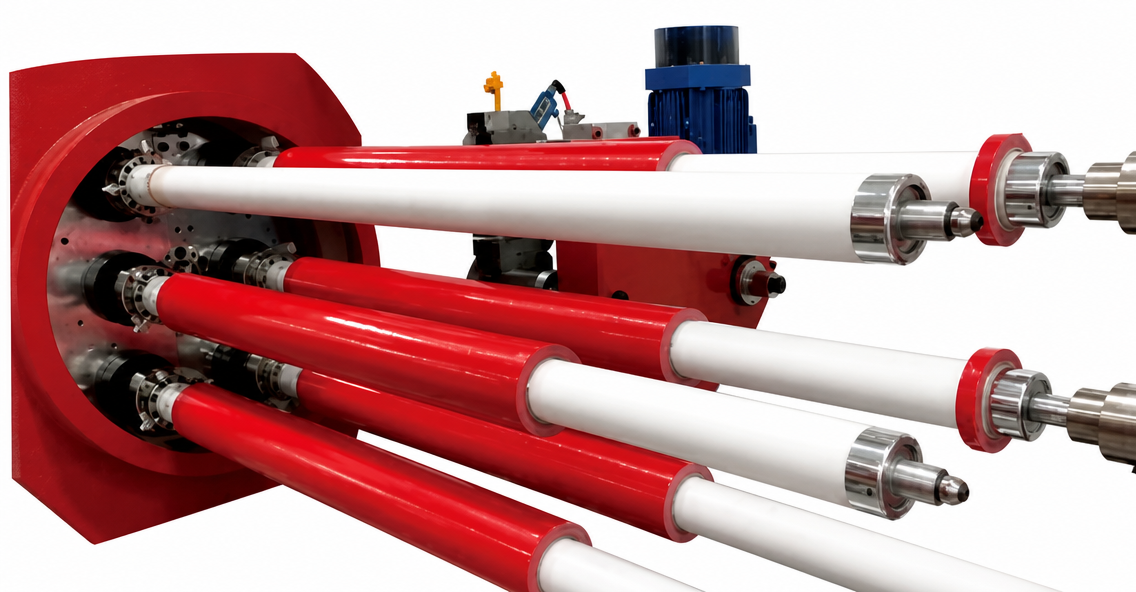

1. Four shafts make the machine more efficient.
2. Each machine motion is programmable by PLC, easy and flexible operation.
3. Silicon lubricating system: the silicon lubricant prevents adhesives from clinging to the cutting blade, and ensures it’s cutting smooth each time.

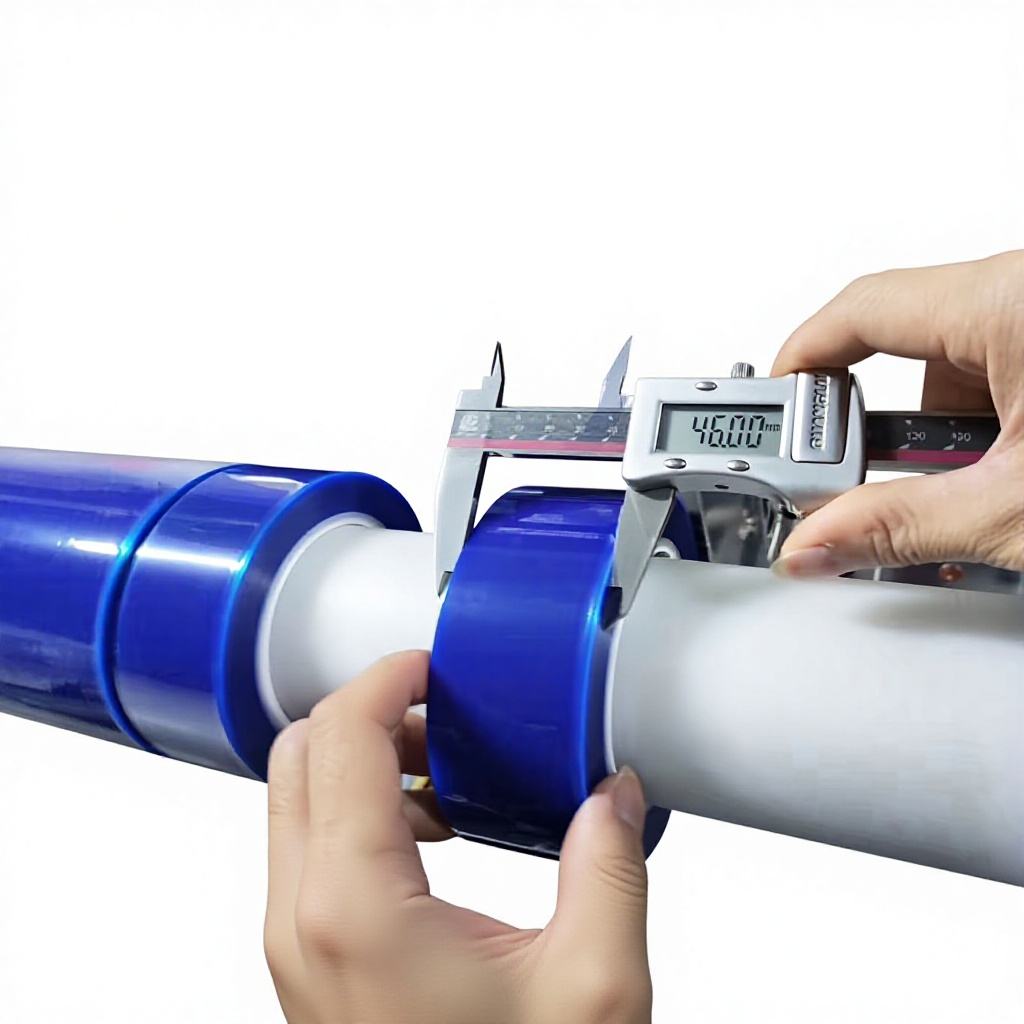

4. Each cut is exactly where It´s supposed to be cut and positioned by the combination of a servo motor-ballscrew and precision slide-heaving rails. The precise of servo motor is 0.02mm.
5. The hydraulic pressure holds upper and lower tape rolls firmly against the cutting blade, no matter how large or small the roll diameter.
Parameters
Model | 703D-3 | 704E-3 | 706 |
Material | BOPP,masking,double sided,cloth tapes |
Voltage(V/Hz) | 3Phase 380V 50HZ |
Effective work width | 1300mm/ 1600mm |
Max.cutting diameter | Φ300mm |
Inner diameter of core | Φ76mm~Φ77mm |
Min.slitting width | 0.5mm (please confirm) |
Feeding way | Liquid pressure cut feeding | Variable-Frequency cut feeding | Servo cut feeding |
